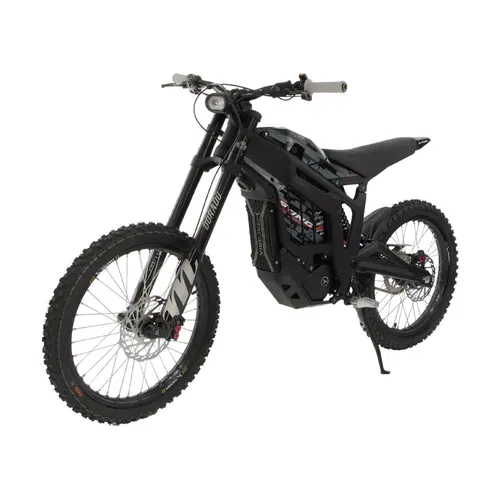

Talara Sting Off-Road E-Bike.
Chassis - Swing Arm Material
6061 T4 & T6 Aluminium Alloy
Chassis Construction Method
Forged by 8000 tons pressure
Rear Shock Absorber
Fastace with Linkage
Tire Size
Front 70/100-19 / Rear 80/100-19
Max Range
76km @ 45 km/h
Max Load
100 Kg

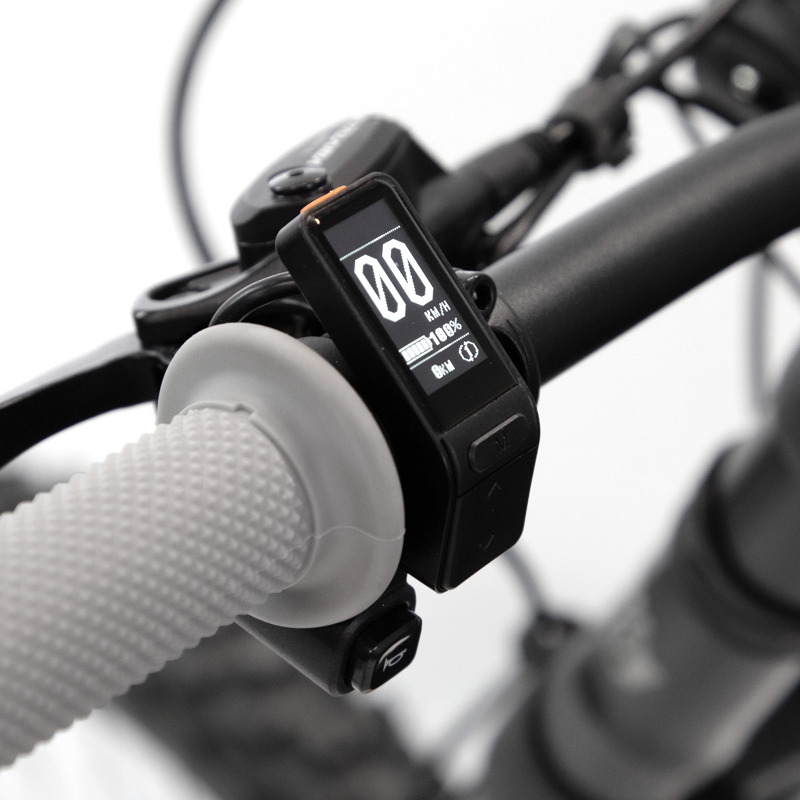

Speedometer
TFT Digital

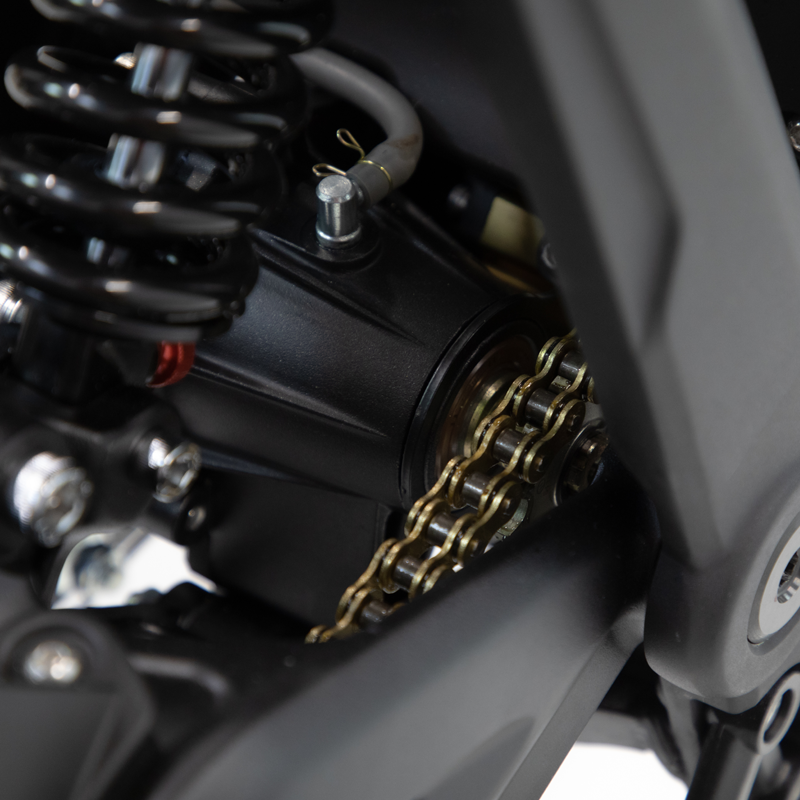

Transmission
Gearbox + Chain
Motor Rated Voltage
60V (DC)
Motor Rated Power / Peak Power
3000w / 6000w
Motor Rated Torque / Peak Torque
8.5 n.m / 31.8 n.m
Motor Shaft Output Torque @ 1000RPM
29.5 n.m
Motor Peak Efficiency
96.60%

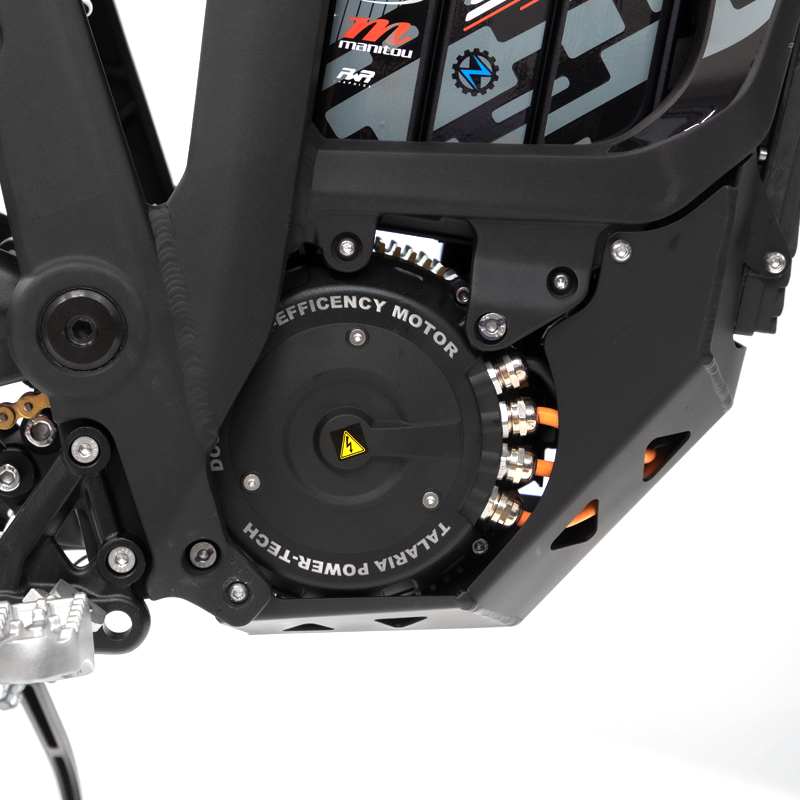

Motor Type
PMSM (Permanent Magnet Synchronous Motor)
Motor Mounting Position
Center Frame
Motor Weight
7 Kg
Motor External Diameter
180mm
Motor Axial Length
130mm
Motor Cooling Method
Air Cooled
Controller Type
FOC
Controller Weight
1.6 Kg
Controller Dimension
240mm x 110mm x 50mm
Controller Peak Efficiency
98.50%
Controller Traveling Wave Current
85A
Controller Highest Temperature
100 °C
Powertrain Rated Rotation Speed
4300 RPM
Powertrain Range of Rotation Speed
0-5300 RPM
Powertrain Peak Efficiency
98%
Powertrain Range of Efficiency (?80%)
1.4 nm - 22.5 n.m
Battery
60V 38.4A Lithium LG Cells
Battery Life Time
800 Cycles before battery looses capacity
Charger
10A 60V
Charging Time
4 Hours
Chassis Weight
9.5 kg
Chassis Surface
Anodizing Paint Treated
Headlight
LED
Fork
Manitou (optional) / RST - DNM (Standard)
Wheel Type
Spoke Wheels 19x1.6
Tire
CST

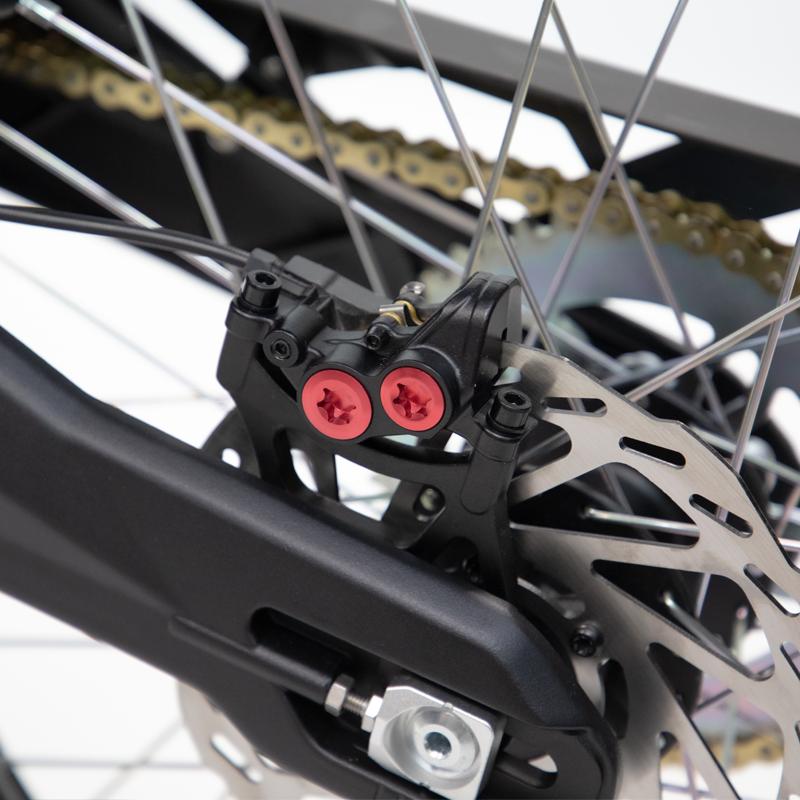

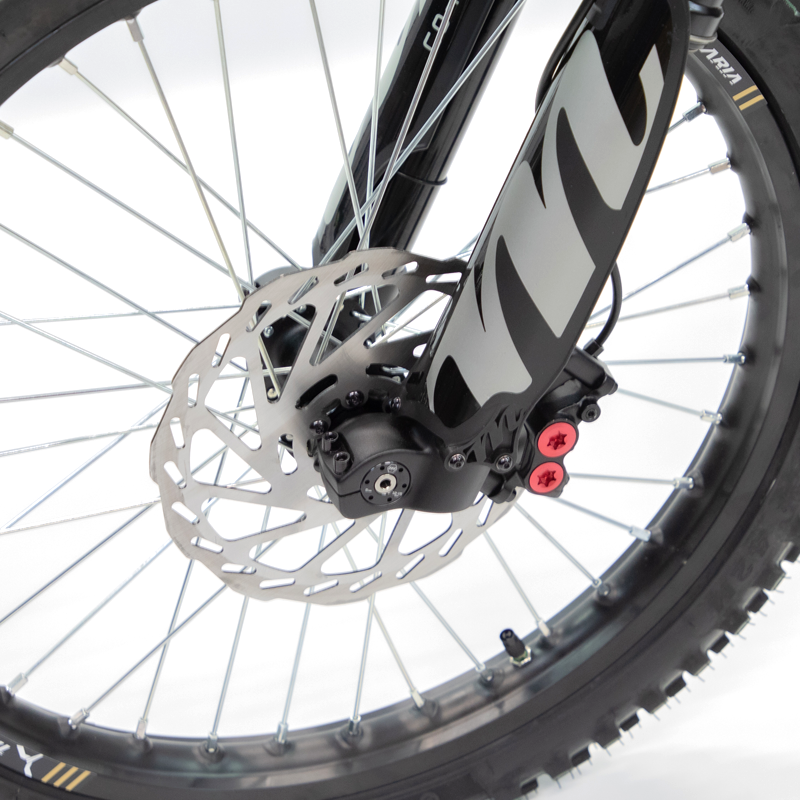

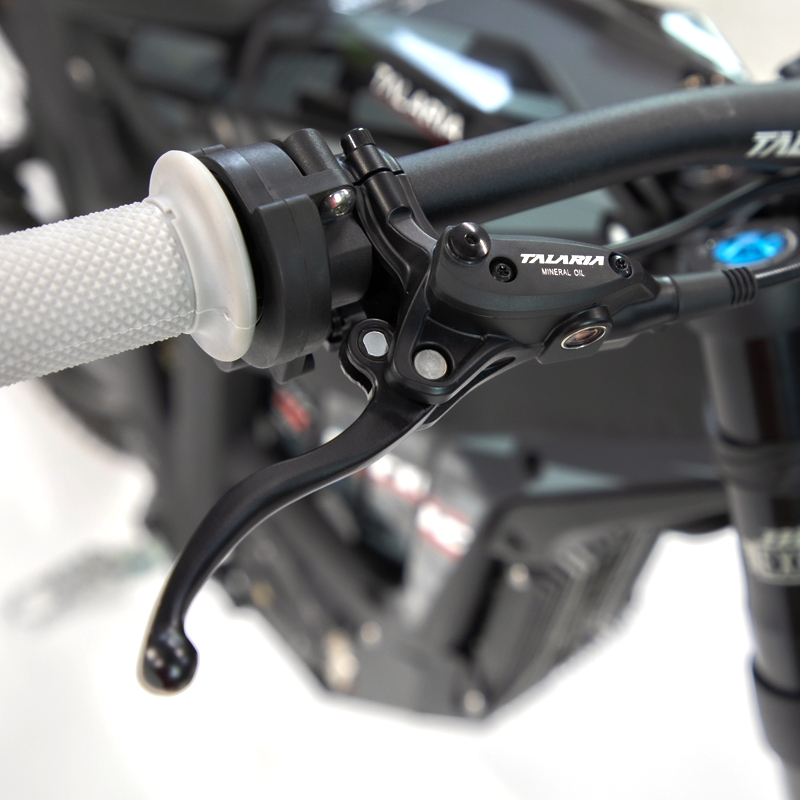

Brakes
4-Piston Caliper Hydrolic Brakes
Brake Disc
203mm
Net Weight
58 Kg
Vehicule Dimension
1870mm x 780mm x 1040mm
Min. Ground Clearance
270mm
Wheel Base
1260mm
